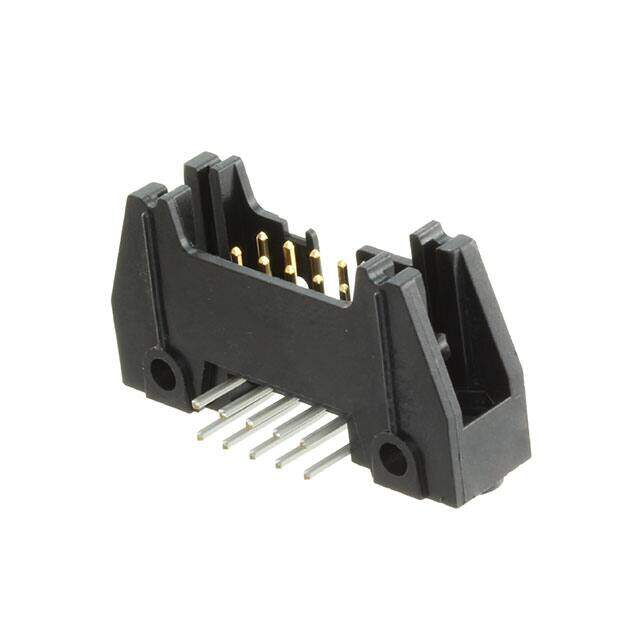

N3793-5002RB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
PROTECT HEADER RT ANG 10 CONTACT
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.720988
≥1 USD $1.720988
≥10 USD $1.623576
≥100 USD $1.531671
≥500 USD $1.444977
≥1000 USD $1.363181
Inventory: 1185
Minimum: 1
-
+
Technical Details
Technical
Series 3000
Feature Keying Slot, Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Beige
Number of Rows 2
Gender Male
Voltage - Rated 1kV
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1.75A
Pitch 2.54mm
Orientation Right Angle
Depth 17.3mm
Insulation Height 0.340 8.64mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Approval Agency UL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.112 2.84mm
Shrouding Shrouded - 4 Wall
Lead Pitch 2.54mm
Number of Contacts 10
Published 2009
Packaging Bulk
Operating Temperature -55°C~105°C
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
Housing Color Black
Insulation Resistance 1GOhm
Max Current Rating 2A
Physical
Housing Material Polyester
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 6 Weeks
Dimensions
Height 8.6mm
Length 32.13mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
