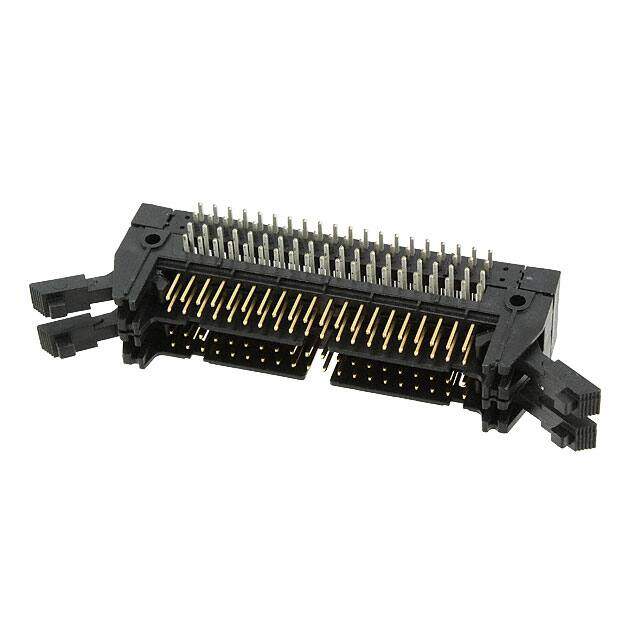

N3432-D302RB
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 40POS 2.54MM
PDF
/
Buying Options
Total Price: USD $25.76
Unit Price: USD $25.759507
≥1 USD $25.759507
≥10 USD $24.30142
≥100 USD $22.925875
≥500 USD $21.628181
≥1000 USD $20.403938
Inventory: 5889
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 70.1mm
Technical
Max Current Rating 1A
Housing Color Black
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin
Number of Contacts 80
Shrouding Shrouded - 3 Wall
Contact Length - Post 0.112 2.84mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.660 16.76mm
Depth 32.5mm
Orientation Right Angle
Pitch 2.54mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks, Long
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 40, 40
Connector Type Header, Stackable (2)
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Keying Slot, Mounting Flange
Series 3000
Published 2008
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Polychlorinated
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
