N3428-5303RB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

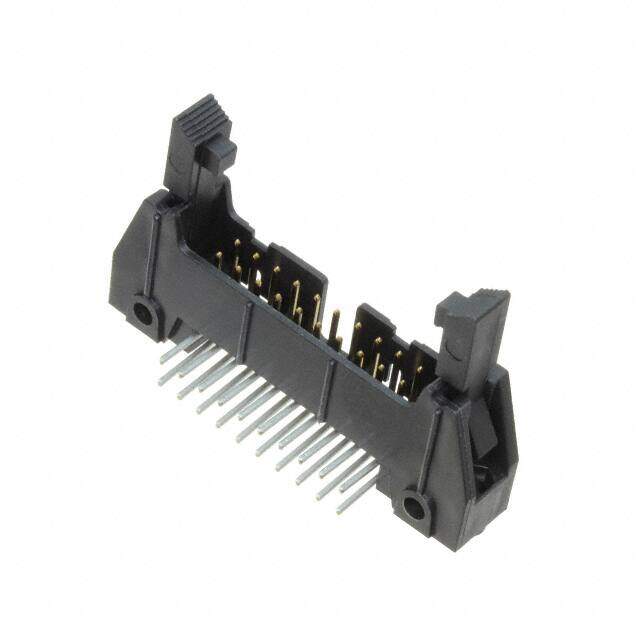

Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole
PDF
/
Buying Options
Total Price: USD $4
Unit Price: USD $3.9952
≥1 USD $3.9952
≥10 USD $3.62912
≥100 USD $2.797696
≥500 USD $2.717766
≥1000 USD $2.318096
Inventory: 161
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 44.83mm
Technical
Mating Post Length 6.2mm
Max Current Rating 1.75A
Insulation Resistance 1GOhm
Lead Length 3.94mm
Housing Color Black
Contact Gender Male
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin
Number of Contacts 20
Lead Pitch 2.54mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.155 3.94mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.340 8.64mm
Depth 27.2mm
Orientation Right Angle
Pitch 2.54mm
Current Rating (Amps) 1.75A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks, Long
Voltage - Rated 1kV
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 20
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Keying Slot, Mounting Flange
Series 3000
Published 2009
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Polyester
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 6 Weeks
