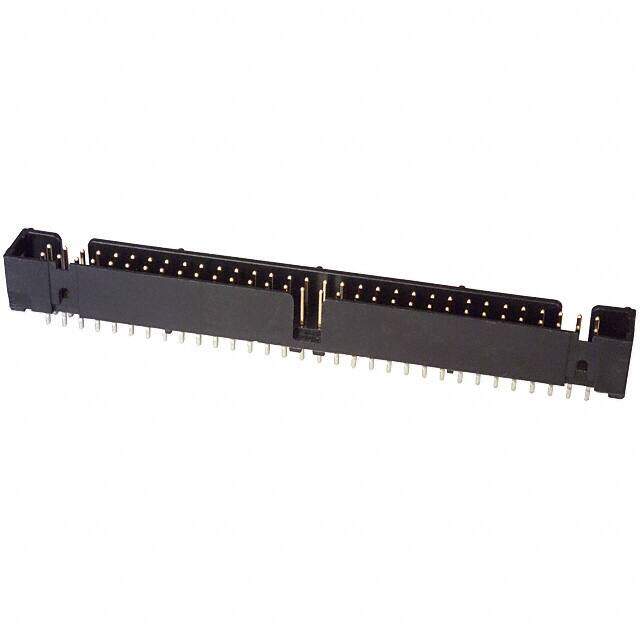

N2564-6002-UG
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 64POS 2.54MM
PDF
/
Inventory: 9255
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Housing Material Plastic
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2009
Series 2500
Feature Keying Slot
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 64
Color Black
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1.75A
Pitch 2.54mm
Insulation Height 0.390 9.91mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.112 2.84mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin-Lead
Contact Length - Mating 0.243 6.17mm
Housing Color Black
Dimensions
Height 9.65mm
Length 88.6mm
Width 8.59mm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
