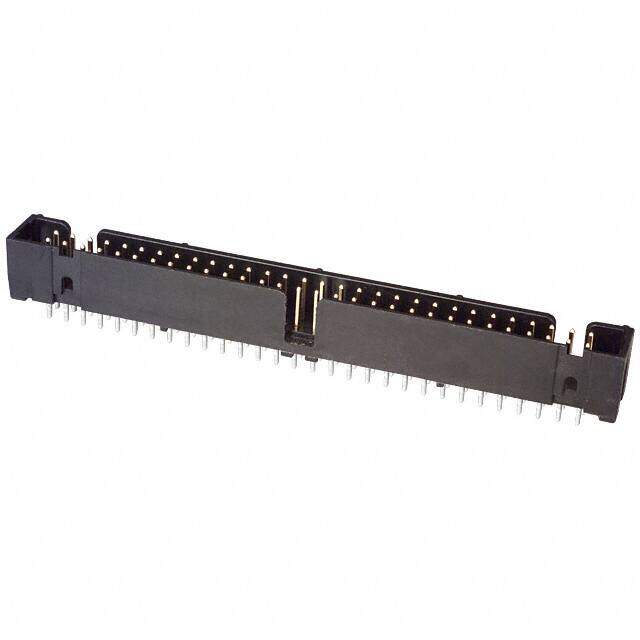

N2560-6002-UG

3M
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 60POS 2.54MM
PDF
/
Inventory: 1432
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 15.0μin 0.38μm

Technical

Housing Color Black
Contact Length - Mating 0.243 6.17mm
Contact Finish - Post Tin-Lead
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.112 2.84mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.390 9.91mm
Pitch 2.54mm
Current Rating (Amps) 1.75A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Color Black
Number of Positions 60
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Keying Slot
Series 2500
Published 2009
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
