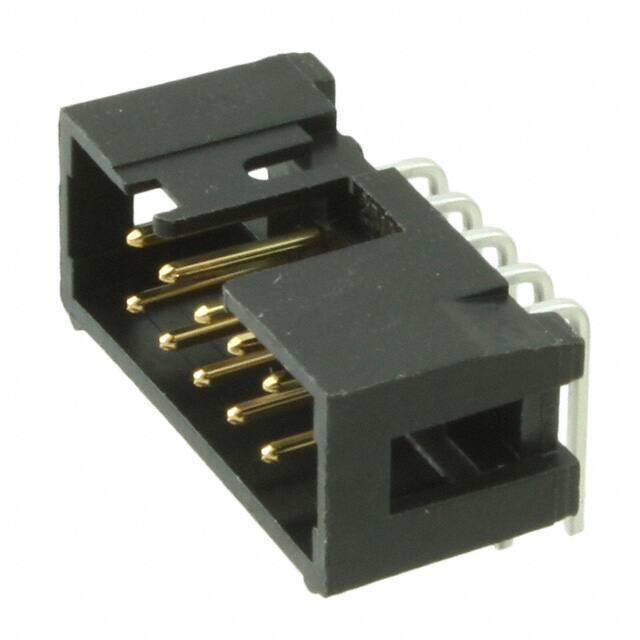

N2510-5003-UB
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 10POS 2.54MM
PDF
/
Inventory: 4454
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Width 9.65mm
Length 20mm
Height 8.59mm
Technical
Housing Color Black
Contact Length - Mating 0.243 6.17mm
Contact Finish - Post Tin-Lead
Lead Pitch 2.54mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.155 3.94mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.338 8.59mm
Pitch 2.54mm
Current Rating (Amps) 1.75A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Color Black
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Keying Slot
Series 2500
Published 2009
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Plastic
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Square
Number of Pins 10
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
