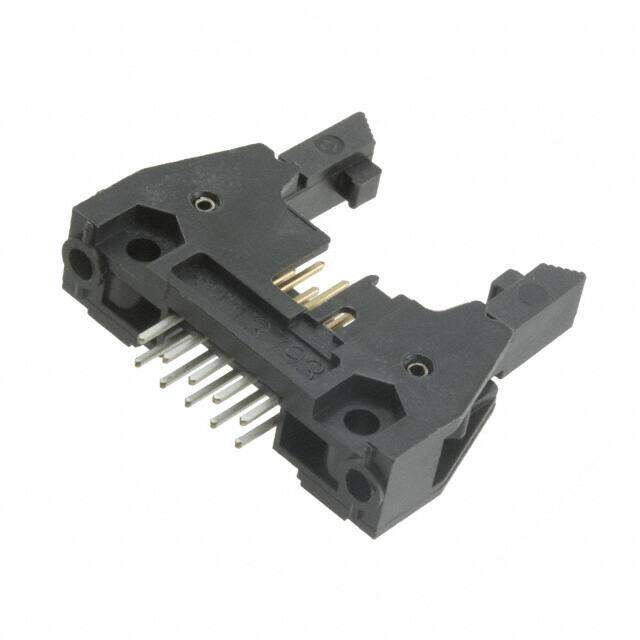

D3793-6302-AR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 10POS 2.54MM
PDF
/
Buying Options
Total Price: USD $1.64
Unit Price: USD $1.6368
≥1 USD $1.6368
≥10 USD $1.4256
≥100 USD $1.27402
≥500 USD $1.061711
≥1000 USD $0.910043
≥3000 USD $0.806907
Inventory: 723
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Material Brass
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Published 2009
Series D3000
Feature Keying Slot, Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Number of Rows 2
Fastening Type Latch Lock/Eject Hooks, Long
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1.75A
Insulation Height 0.680 17.27mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.112 2.84mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
Overall Contact Length 0.652 16.56mm
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Supply Chain
Factory Lead Time 6 Weeks
