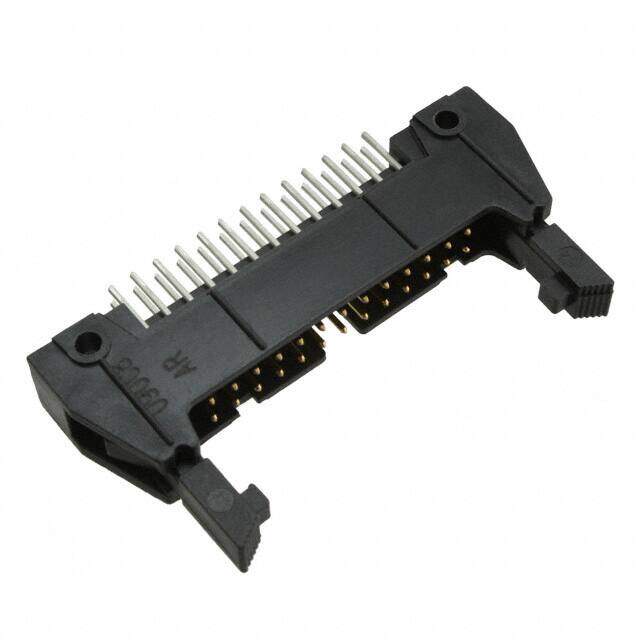

D3429-6302-AR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HDR 26POS VERT L-LATCH 10AU
PDF
/
Buying Options
Total Price: USD $3.49
Unit Price: USD $3.4936
≥1 USD $3.4936
≥10 USD $3.16976
≥100 USD $2.44369
≥500 USD $2.37387
≥1000 USD $2.024774
Inventory: 407
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Housing Material Polyester
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Published 2009
Series D3000
Feature Keying Slot, Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 26
Color Black
Number of Rows 2
Gender Male
Fastening Type Latch Lock/Eject Hooks, Long
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1.75A
Pitch 2.54mm
Insulation Height 0.680 17.27mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.112 2.84mm
Shrouding Shrouded - 4 Wall
Number of Contacts 26
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
Contact Gender Male
Overall Contact Length 0.652 16.56mm
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status RoHS Compliant
