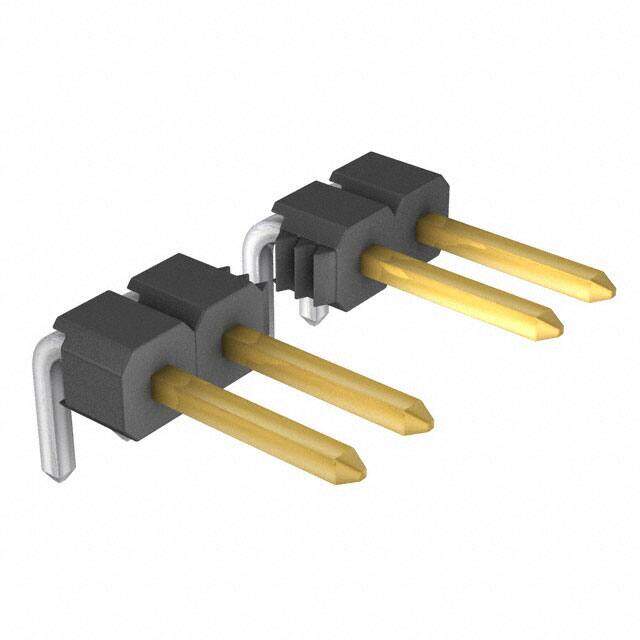

961120-5604-AR
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A SGL 20POS GOLD
PDF
/
Inventory: 1106
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Thermoplastic
Housing Material Thermoplastic
Technical
Operating Temperature -25°C~105°C
Packaging Bulk
Published 2008
Series 961
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 20
Max Operating Temperature 105°C
Min Operating Temperature -25°C
Color Black
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 2A
Pitch 2.54mm
Insulation Height 0.098 2.50mm
Style Board to Board
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.130 3.30mm
Shrouding Unshrouded
Number of Contacts 20
Contact Finish - Post Tin
Contact Length - Mating 0.240 6.10mm
Contact Gender Male
Lead Length 3.3mm
Insulation Resistance 500MOhm
Mating Post Length 6.1mm
Dimensions
Contact Finish Thickness - Mating Flash
Contact Finish Thickness - Post 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
