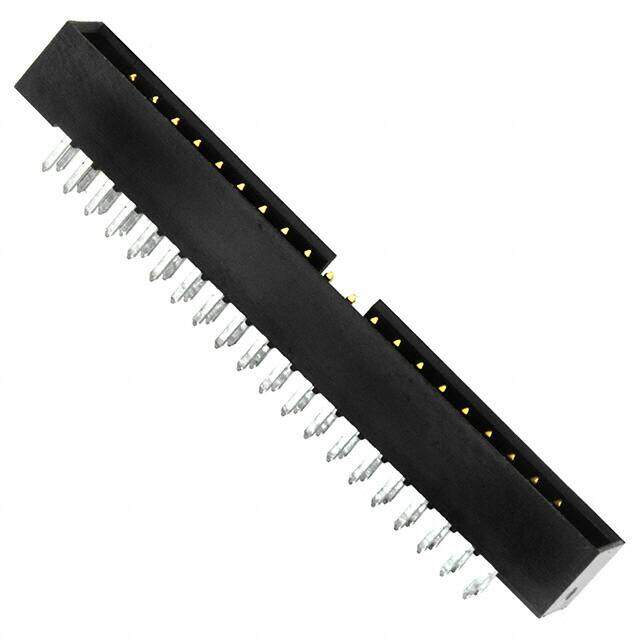

957240-6002-AR image
Favorite
957240-6002-AR image
Favorite

957240-6002-AR

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HDR 40POS 2MM VERT T/H 10AU
PDF
/
Buying Options
Total Price: USD $5.41
Unit Price: USD $5.412
≥1 USD $5.412
≥10 USD $4.9104
≥100 USD $4.32652
≥500 USD $3.67752
≥1000 USD $3.136716
Inventory: 2868
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 39.4μin 1.00μm
Contact Finish Thickness - Mating Flash
Length 47.2mm

Technical

Max Current Rating 1A
Housing Color Black
Contact Finish - Post Tin
Number of Contacts 40
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.118 3.00mm
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.220 5.60mm
Depth 5.5mm
Orientation Straight
Pitch 2.0066mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 40
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Keying Slot
Series 957
Published 2009
Packaging Tray
Operating Temperature -40°C~105°C

Physical

Housing Material Thermoplastic
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 8 Weeks
