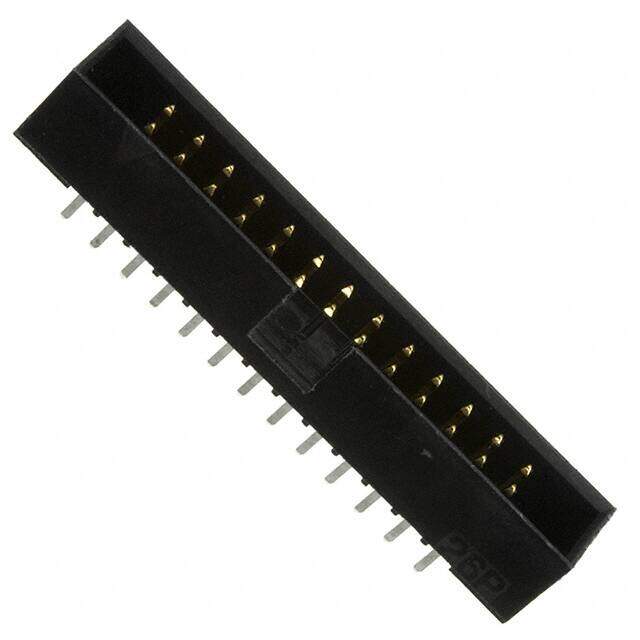

957226-6002-AR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HDR 26POS 2MM VERT T/H 10AU
PDF
/
Buying Options
Total Price: USD $2.46
Unit Price: USD $2.464
≥1 USD $2.464
≥10 USD $2.23696
≥100 USD $1.735131
Inventory: 777
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 39.4μin 1.00μm
Contact Finish Thickness - Mating Flash
Length 33.2mm
Technical
Max Current Rating 1A
Housing Color Black
Contact Finish - Post Tin
Number of Contacts 26
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.118 3.00mm
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.220 5.60mm
Depth 5.5mm
Orientation Straight
Pitch 2mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 26
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Keying Slot
Series 957
Published 2009
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Thermoplastic
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 8 Weeks
