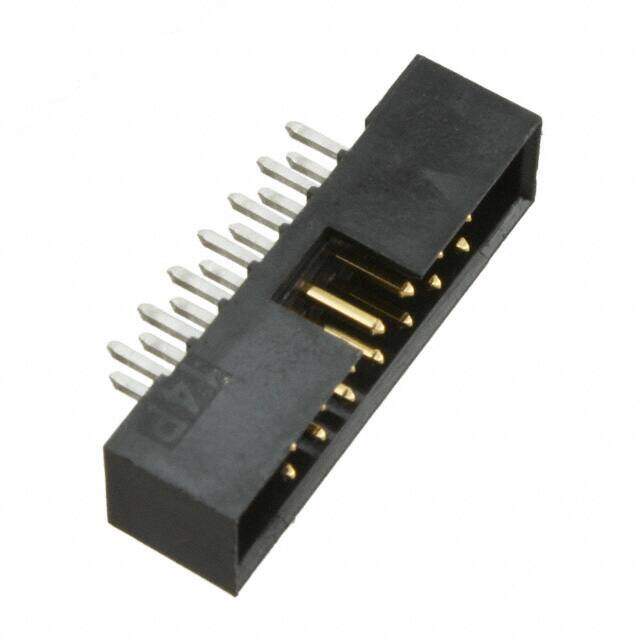

957214-6002-AR image
Favorite
957214-6002-AR image
Favorite

957214-6002-AR

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HDR 14POS 2MM VERT T-H 10AU
PDF
/
Buying Options
Total Price: USD $1.85
Unit Price: USD $1.851875
≥1 USD $1.851875
≥10 USD $1.747043
≥100 USD $1.64816
≥500 USD $1.554874
≥1000 USD $1.466861
Inventory: 1175
Minimum: 1
-
+

Technical Details

Technical

Orientation Straight
Depth 5.5mm
Insulation Height 0.220 5.60mm
Style Board to Board
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.118 3.00mm
Shrouding Shrouded - 4 Wall
Number of Contacts 14
Contact Finish - Post Tin
Contact Gender Male
Housing Color Black
Max Current Rating 1A
Pitch 2mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 14
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Keying Slot
Series 957
Published 2009
Packaging Tray
Operating Temperature -40°C~105°C

Dimensions

Length 21.2mm
Contact Finish Thickness - Mating Flash
Contact Finish Thickness - Post 39.4μin 1.00μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0

Physical

Housing Material Thermoplastic
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 8 Weeks
