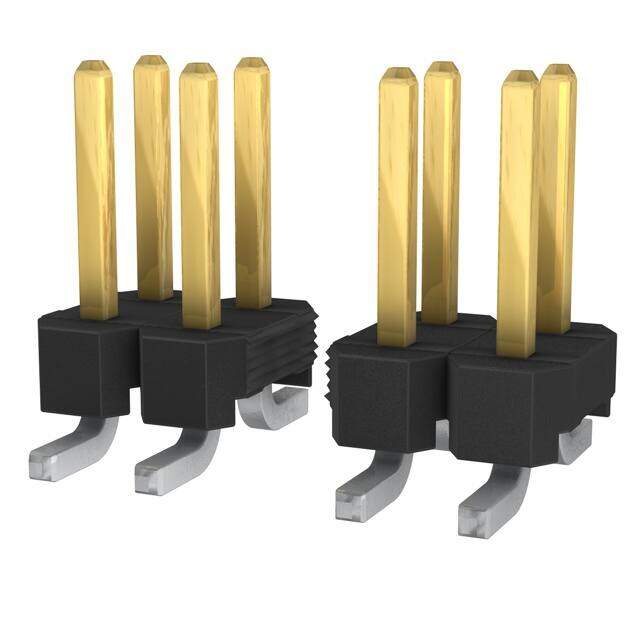

951216-2520-AR-TP image
Favorite
951216-2520-AR-TP image
Favorite

951216-2520-AR-TP

3M
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Headers & Wire Housings 16P PIN STRP HDR 2R STRT SMT 10U AU
PDF
/
Inventory: 1837
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 39.4μin 1.00μm
Contact Finish Thickness - Mating Flash
Length 16mm

Technical

Max Current Rating 1A
Contact Resistance 20mOhm
Housing Color Black
Contact Gender Male
Contact Length - Mating 0.157 4.00mm
Contact Finish - Post Tin
Number of Contacts 16
Shrouding Unshrouded
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.060 1.52mm
Depth 4mm
Orientation Straight
Pitch 2mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 1kV
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -25°C
Max Operating Temperature 105°C
Number of Positions 16
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series 951
Published 2009
Packaging Tube
Operating Temperature -25°C~105°C

Physical

Housing Material Thermoplastic
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 9 Weeks
