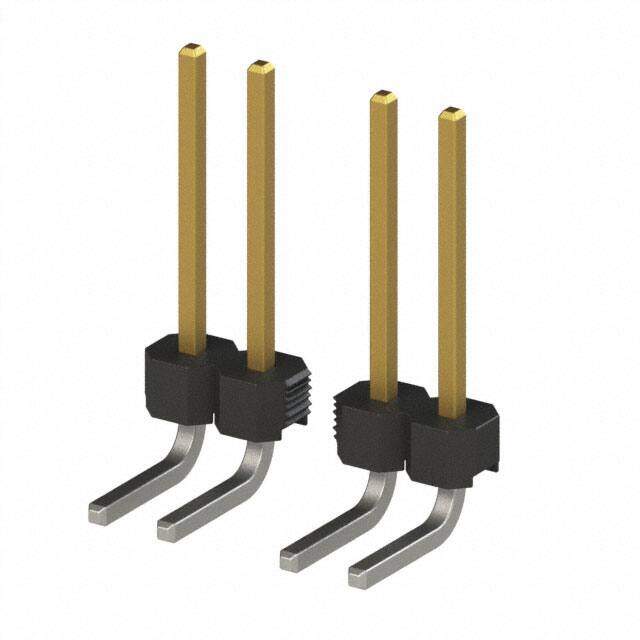

951118-7722-AR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 18P PIN STRP HDR 1R RA PTH 10U AU
PDF
/
Inventory: 1514
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Thermoplastic
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2008
Series 951
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 18
Color Black
Number of Rows 1
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1A
Pitch 2.0066mm
Insulation Height 0.079 2.00mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Contact Length - Post 0.110 2.79mm
Shrouding Unshrouded
Contact Finish - Post Tin
Contact Length - Mating 0.305 7.75mm
Dimensions
Contact Finish Thickness - Mating Flash
Contact Finish Thickness - Post 39.4μin 1.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
