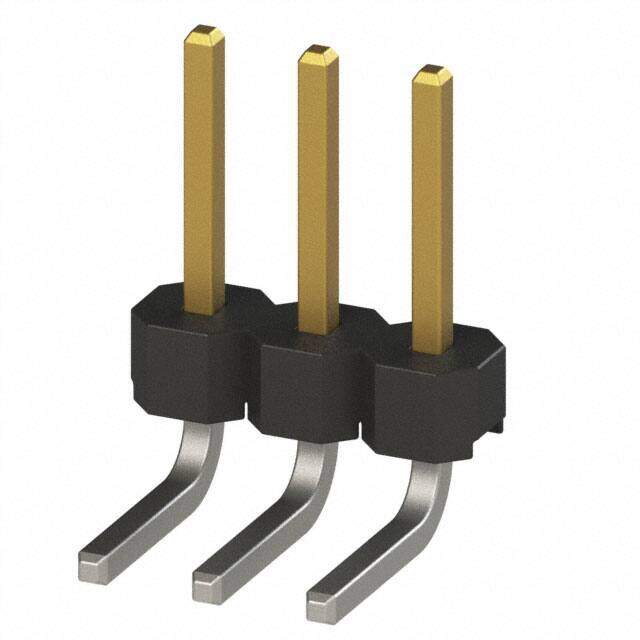

951103-7622-AR image
Favorite
951103-7622-AR image
Favorite

951103-7622-AR

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER 3POS 2MM R/A T/H
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.3432
≥1 USD $0.3432
≥10 USD $0.29216
≥100 USD $0.227568
≥500 USD $0.154185
≥1000 USD $0.139322
≥3000 USD $0.130029
Inventory: 10930
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 39.4μin 1.00μm
Contact Finish Thickness - Mating Flash
Length 6mm

Technical

Max Current Rating 1A
Contact Resistance 20mOhm
Housing Color Black
Contact Gender Male
Contact Length - Mating 0.173 4.40mm
Contact Finish - Post Tin
Shrouding Unshrouded
Contact Length - Post 0.110 2.79mm
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.079 2.00mm
Depth 7.3mm
Orientation Right Angle
Pitch 2mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Color Black
Min Operating Temperature -25°C
Max Operating Temperature 105°C
Number of Positions 3
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 951
Published 2009
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Housing Material Thermoplastic
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 9 Weeks
