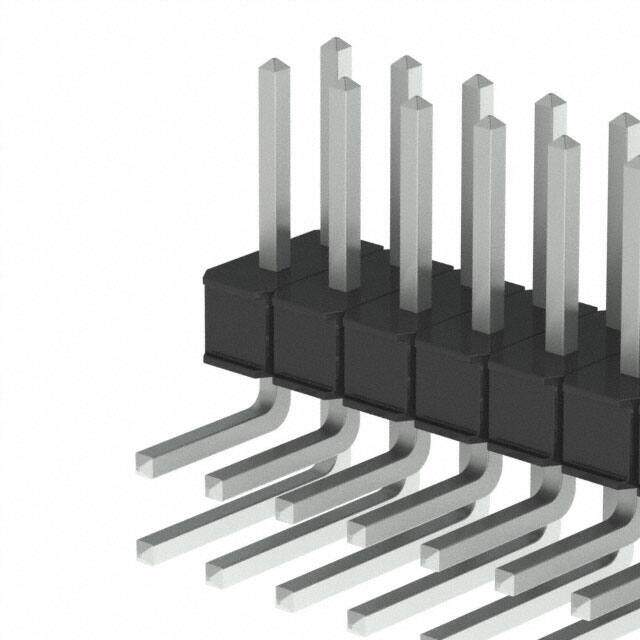

929838-04-27
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings .100 RT ANG 27 PIN .235-.145
PDF
/
Inventory: 7025
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Width 2.54mm
Length 68.6mm
Height 5.46mm
Technical
Housing Color Black
Contact Gender Male
Contact Length - Mating 0.235 5.97mm
Number of Contacts 54
Shrouding Unshrouded
Contact Length - Post 0.145 3.68mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 2.5A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.215 5.45mm
Pitch 2.54mm
Current Rating (Amps) 2.5A
Contact Type Male Pin
Contact Finish - Mating Tin-Lead
Fastening Type Push-Pull
Voltage - Rated 1.5kV
Gender Male
Number of Rows 2
Color Black
Number of Positions 54
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series 929
Published 2008
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Plastic
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Copper Alloy
