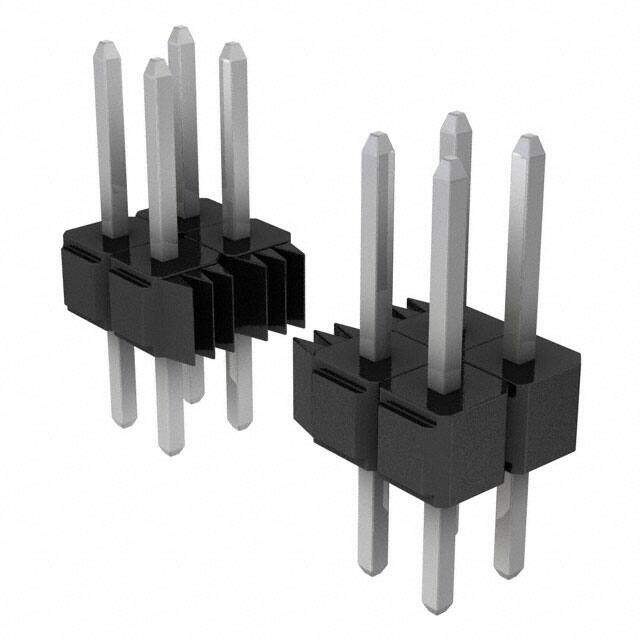

929836-09-25-RK image
Favorite
929836-09-25-RK image
Favorite

929836-09-25-RK

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER .100 DUAL STR 50POS
PDF
/
Inventory: 3365
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating 200.0μin 5.08μm
Width 5.46mm
Length 63.5mm
Height 2.54mm

Technical

Overall Contact Length 0.480 12.19mm
Housing Color Black
Contact Gender Male
Contact Length - Mating 0.235 5.97mm
Contact Finish - Post Tin
Number of Contacts 50
Shrouding Unshrouded
Contact Length - Post 0.145 3.68mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 2.5A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.100 2.54mm
Pitch 2.54mm
Current Rating (Amps) 2.5A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 1.5kV
Gender Male
Number of Rows 2
Color Black
Number of Positions 50
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series 929
Published 2008
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Housing Material Plastic
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
