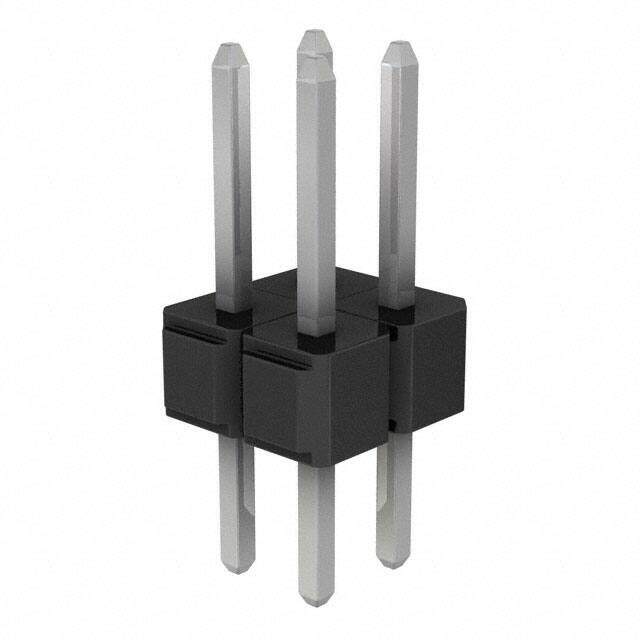

929836-09-02-RK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER .100 DUAL STR 4POS
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.3872
≥1 USD $0.3872
≥10 USD $0.32824
≥100 USD $0.255112
≥500 USD $0.218645
≥1000 USD $0.182195
≥3000 USD $0.156174
Inventory: 931
Minimum: 1
-
+
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Plastic
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2008
Series 929
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header
Number of Positions 4
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 1.5kV
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 2.5A
Pitch 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board
Number of Positions Loaded All
Current Rating 2.5A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.145 3.68mm
Shrouding Unshrouded
Number of Contacts 4
Contact Finish - Post Tin
Contact Length - Mating 0.235 5.97mm
Contact Gender Male
Housing Color Black
Overall Contact Length 0.480 12.19mm
Dimensions
Height 2.54mm
Length 5.1mm
Width 5.46mm
Contact Finish Thickness - Mating 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
