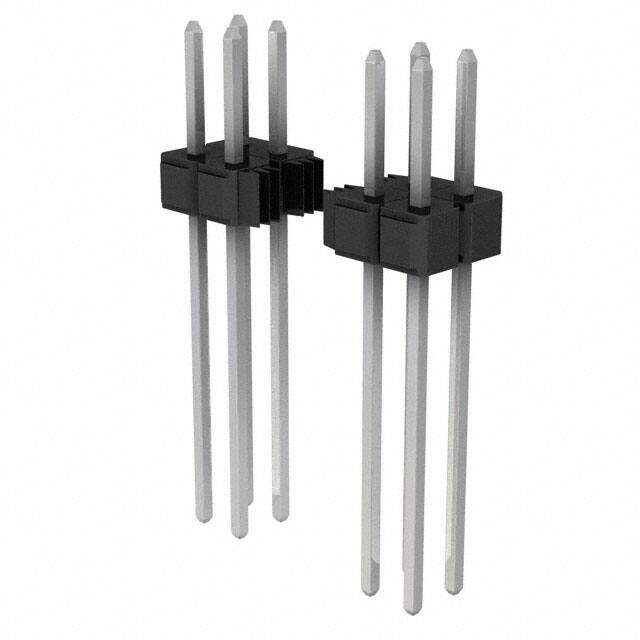

929836-05-25-RK image
Favorite
929836-05-25-RK image
Favorite

929836-05-25-RK

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER .100 DUAL STR 50POS
PDF
/
Inventory: 2179
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Plastic

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2008
Series 929
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header
Number of Positions 50
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 1.5kV
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 2.5A
Pitch 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board
Number of Positions Loaded All
Current Rating 2.5A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.610 15.49mm
Shrouding Unshrouded
Number of Contacts 50
Contact Finish - Post Tin
Contact Length - Mating 0.235 5.97mm
Contact Gender Male
Housing Color Black
Overall Contact Length 0.945 24.00mm

Dimensions

Height 2.54mm
Length 63.5mm
Width 5.46mm
Contact Finish Thickness - Mating 200.0μin 5.08μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
