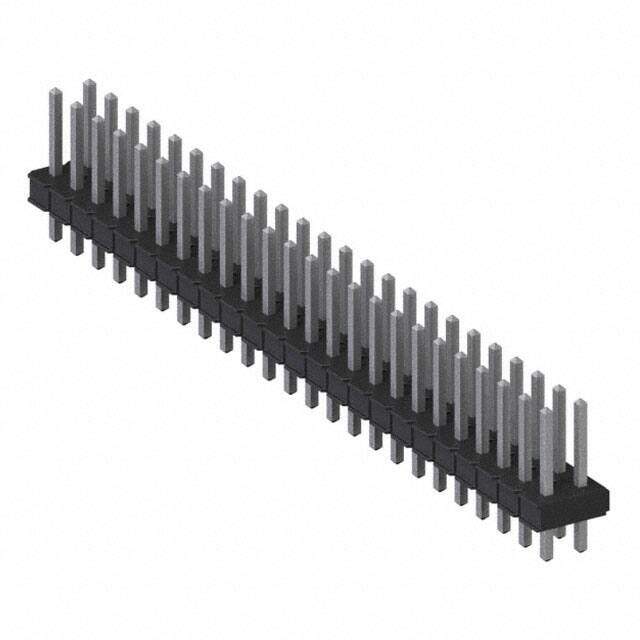

929836-01-24
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 48POS 2.54MM
PDF
/
Inventory: 3778
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Number of Pins 48
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series 929
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 48
Number of Rows 2
Voltage - Rated 1.5kV
Fastening Type Push-Pull
Contact Finish - Mating Tin-Lead
Contact Type Male Pin
Current Rating (Amps) 2.5A
Pitch 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board
Number of Positions Loaded All
Current Rating 2.5A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.110 2.79mm
Shrouding Unshrouded
Lead Pitch 2.54mm
Contact Length - Mating 0.235 5.97mm
Contact Gender Male
Overall Contact Length 0.445 11.30mm
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
