929836-01-02-RK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

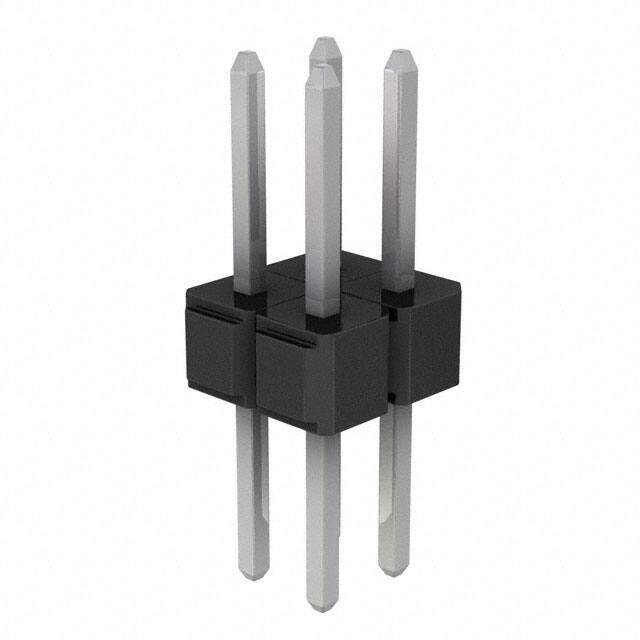

4 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole Tin
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.3872
≥1 USD $0.3872
≥10 USD $0.32824
≥100 USD $0.255112
≥500 USD $0.218645
≥1000 USD $0.182195
≥3000 USD $0.156174
Inventory: 1270
Minimum: 1
-
+
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Polychlorinated
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2008
Series 929
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 1.5kV
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 2.5A
Pitch 2.54mm
Orientation Straight
Depth 5.48mm
Insulation Height 0.100 2.54mm
Style Board to Board
Number of Positions Loaded All
Current Rating 2.5A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.110 2.79mm
Shrouding Unshrouded
Contact Finish - Post Tin
Contact Length - Mating 0.235 5.97mm
Contact Gender Male
Housing Color Black
Overall Contact Length 0.445 11.30mm
Max Current Rating 2.5A
Dimensions
Length 5.1mm
Contact Finish Thickness - Mating 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
