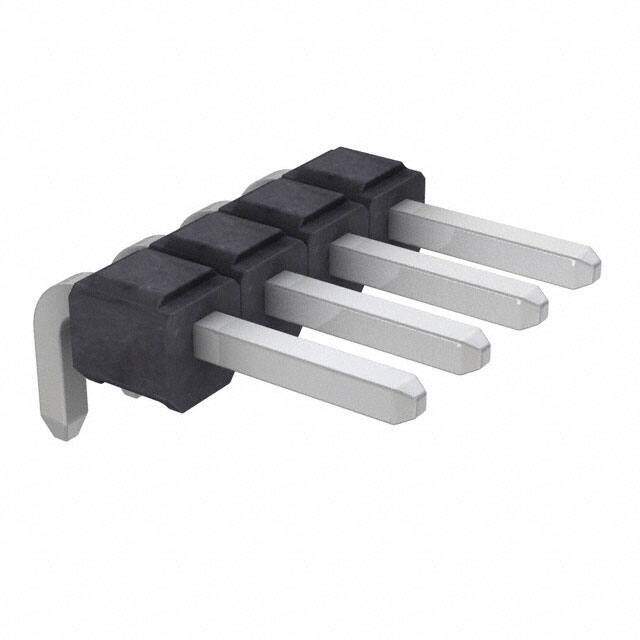

929835-01-04-RK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings .100 RT ANG 4 PIN .235-.110
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.3784
≥1 USD $0.3784
≥10 USD $0.32032
≥100 USD $0.249392
≥500 USD $0.21377
≥1000 USD $0.178138
≥3000 USD $0.152689
Inventory: 1756
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 200.0μin 5.08μm
Width 2.54mm
Length 10.2mm
Height 2.92mm
Technical
Housing Color Black
Contact Length - Mating 0.235 5.97mm
Contact Finish - Post Tin
Number of Contacts 4
Shrouding Unshrouded
Contact Length - Post 0.110 2.79mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.115 2.92mm
Pitch 2.54mm
Current Rating (Amps) 2.5A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Color Black
Number of Positions 4
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series 929
Published 2008
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Plastic
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
