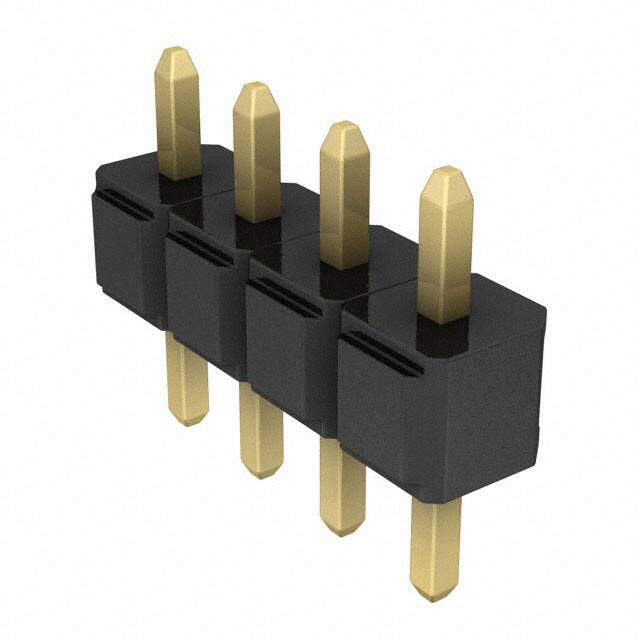

929805-01-04-I
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings PNSTRP HDR ST GOLD 5RWX4 10M PBT INS
PDF
/
Inventory: 8021
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 10.0μin 0.25μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Technical
Overall Contact Length 0.318 8.08mm
Contact Gender Male
Contact Length - Mating 0.093 2.36mm
Contact Finish - Post Gold
Shrouding Unshrouded
Contact Length - Post 0.110 2.79mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.115 2.92mm
Pitch 2.54mm
Current Rating (Amps) 2.5A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Color Black
Number of Positions 4
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series 929
Published 2004
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 3 Weeks
