929715-10-18-I
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

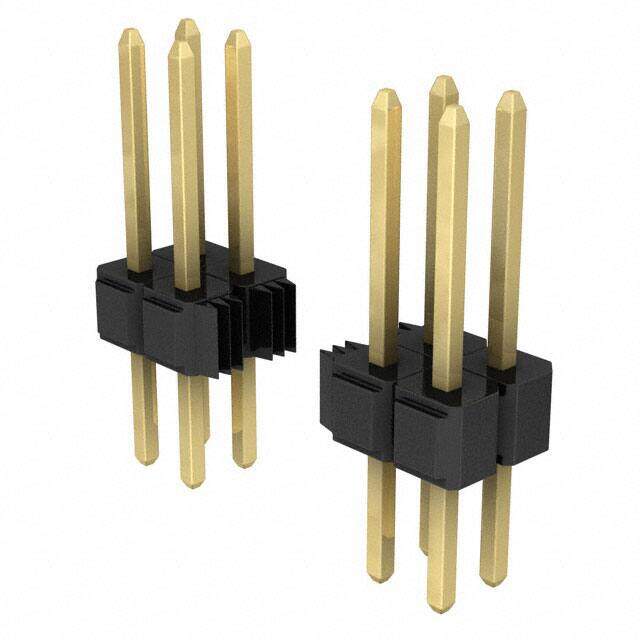

36 Positions Header, Unshrouded Connector 0.100" (2.54mm) Through Hole Gold
PDF
/
Inventory: 8196
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Plastic
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2008
Series 929
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header
Number of Positions 36
Color Black
Number of Rows 2
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 2.5A
Pitch 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.175 4.45mm
Shrouding Unshrouded
Number of Contacts 36
Contact Finish - Post Gold
Contact Length - Mating 0.318 8.08mm
Housing Color Black
Overall Contact Length 0.593 15.07mm
Dimensions
Height 2.54mm
Length 45.7mm
Width 5.46mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
