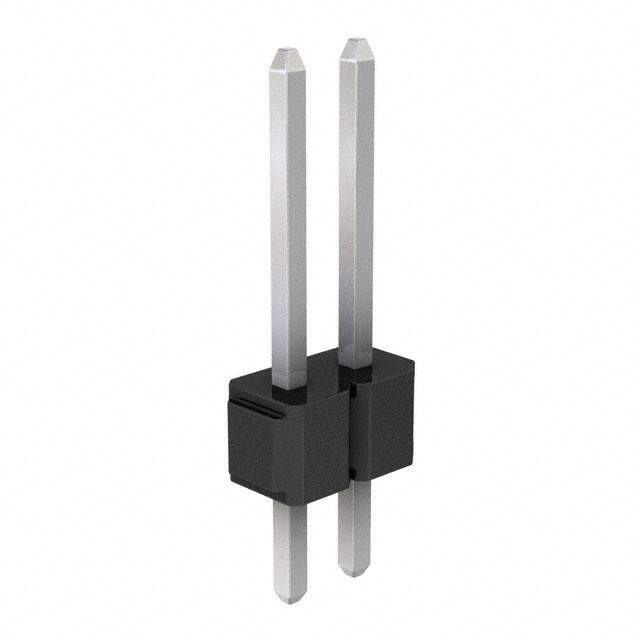

929710-11-01
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 2/PS/2R/STR .318 - .125/TIN/90:10
PDF
/
Buying Options
Total Price: USD $0.36
Unit Price: USD $0.3608
≥1 USD $0.3608
≥10 USD $0.31064
≥100 USD $0.241648
≥500 USD $0.207099
≥1000 USD $0.172586
≥3000 USD $0.147928
Inventory: 433
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Overall Contact Length 0.543 13.80mm
Contact Length - Mating 0.318 8.08mm
Shrouding Unshrouded
Contact Length - Post 0.125 3.18mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.100 2.54mm
Pitch 2.54mm
Current Rating (Amps) 2.5A
Contact Type Male Pin
Contact Finish - Mating Tin-Lead
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Color Black
Number of Positions 2
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 929
Published 2008
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 3 Weeks
