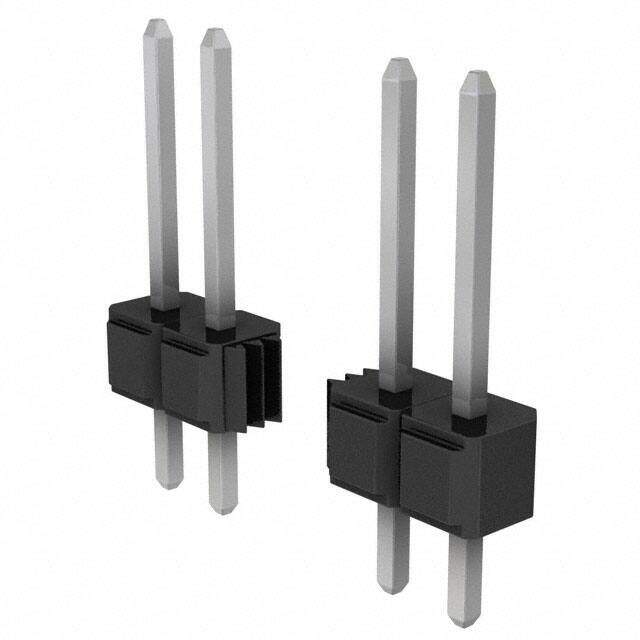

929700-01-18
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 18 PS/1R/SRT/.318 .110/TIN/90:10
PDF
/
Inventory: 917
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Overall Contact Length 0.528 13.42mm
Contact Gender Male
Contact Length - Mating 0.318 8.08mm
Shrouding Unshrouded
Contact Length - Post 0.110 2.79mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 2.5A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.100 2.54mm
Pitch 2.54mm
Current Rating (Amps) 2.5A
Contact Type Male Pin
Contact Finish - Mating Tin-Lead
Fastening Type Push-Pull
Voltage - Rated 1.5kV
Gender Male
Number of Rows 1
Color Black
Number of Positions 18
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 929
Published 2008
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 3 Weeks
