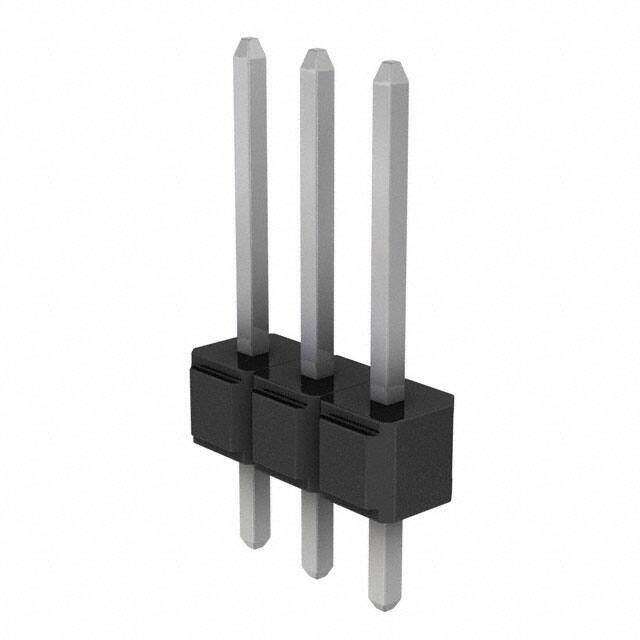

929700-01-03-RK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 1/HDR/PS/1R/ST .295/ST.130/TIN/ROHS
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.396
≥1 USD $0.396
≥10 USD $0.3388
≥100 USD $0.263648
≥500 USD $0.225949
≥1000 USD $0.188294
≥3000 USD $0.161401
Inventory: 539
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 200.0μin 5.08μm
Technical
Overall Contact Length 0.528 13.42mm
Contact Gender Male
Contact Length - Mating 0.318 8.08mm
Contact Finish - Post Tin
Shrouding Unshrouded
Contact Length - Post 0.110 2.79mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 2.5A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.100 2.54mm
Pitch 2.54mm
Current Rating (Amps) 2.5A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 1.5kV
Number of Rows 1
Number of Positions 3
Resistance 1Ohm
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 929
Published 2015
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Contact Shape Square
Mounting Type Through Hole
Contact Plating Tin
Contact Material Copper Alloy
