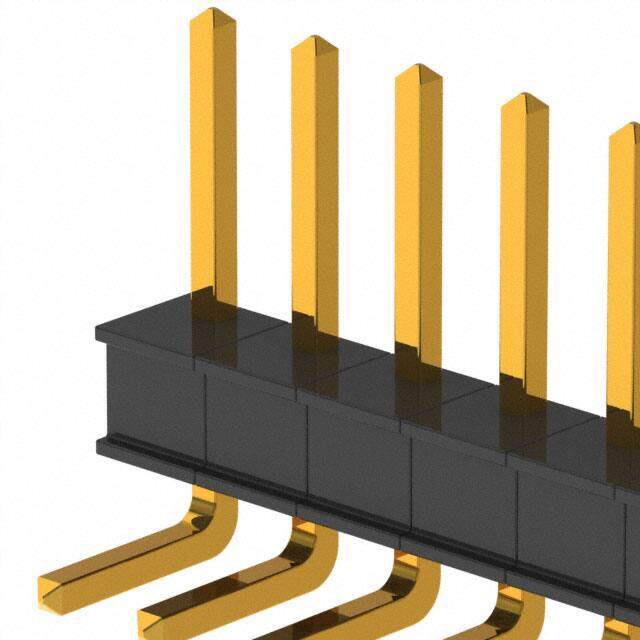

929648-01-21-EU
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 21 PS/1R/RA/.235 .110/ALL 10U/ROHS
PDF
/
Inventory: 1435
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 10.0μin 0.25μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Technical
Contact Length - Mating 0.235 5.97mm
Contact Finish - Post Gold
Shrouding Unshrouded
Contact Length - Post 0.110 2.79mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.115 2.92mm
Pitch 2.54mm
Current Rating (Amps) 2.5A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Color Black
Number of Positions 21
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 929
Published 2008
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
