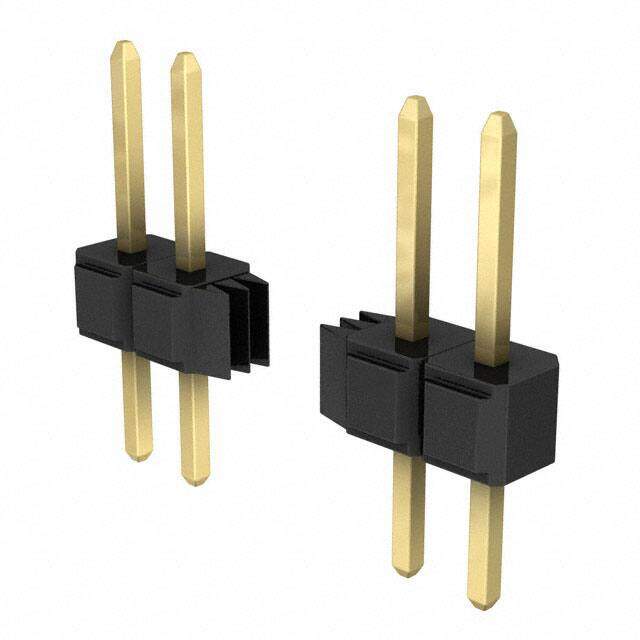

929647-09-05-I
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings .100 STR 05 PIN .235-.145
PDF
/
Inventory: 1697
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 51 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2008
Series 929
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header, Breakaway
Number of Positions 5
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 1.5kV
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 2.5A
Pitch 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board
Number of Positions Loaded All
Current Rating 2.5A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.145 3.68mm
Shrouding Unshrouded
Number of Contacts 5
Contact Finish - Post Gold
Contact Length - Mating 0.235 5.97mm
Contact Gender Male
Housing Color Black
Overall Contact Length 0.480 12.19mm
Dimensions
Height 2.54mm
Length 12.7mm
Width 2.92mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 10.0μin 0.25μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
