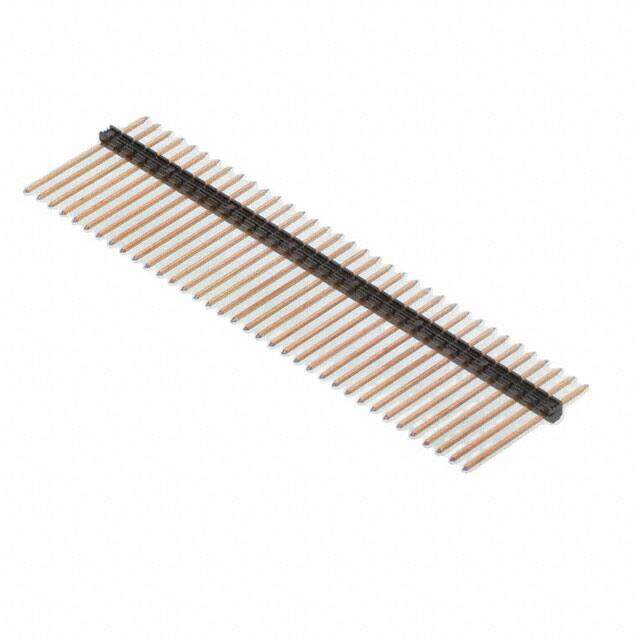

929647-05-36-EU image
Favorite
929647-05-36-EU image
Favorite

929647-05-36-EU

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER 36POS STR .100" GOLD
PDF
/
Buying Options
Total Price: USD $8.53
Unit Price: USD $8.5272
≥1 USD $8.5272
≥10 USD $7.67272
≥100 USD $6.85696
≥500 USD $5.745027
≥1000 USD $5.077873
Inventory: 119
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Polycyclohexylenedimethylene

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2008
Series 929
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Breakaway
Number of Positions 36
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 1.5kV
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 2.5A
Pitch 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board
Number of Positions Loaded All
Current Rating 2.5A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.610 15.49mm
Shrouding Unshrouded
Number of Contacts 36
Contact Finish - Post Gold
Contact Length - Mating 0.235 5.97mm
Contact Gender Male
Housing Color Black
Overall Contact Length 0.945 24.00mm

Dimensions

Height 2.54mm
Length 91.4mm
Width 2.92mm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 10.0μin 0.25μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
