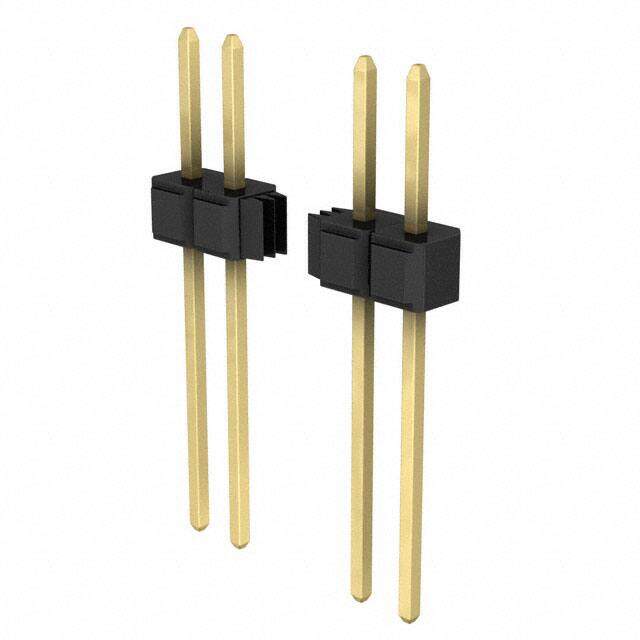

929647-04-05-I image
Favorite
929647-04-05-I image
Favorite

929647-04-05-I

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Headers & Wire Housings .100 STR 5 PIN .235-.510
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.7952
≥1 USD $1.7952
≥10 USD $1.55936
≥100 USD $1.393832
≥500 USD $1.161494
≥1000 USD $0.99557
≥3000 USD $0.882737
Inventory: 956
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 10.0μin 0.25μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Width 2.92mm
Length 12.7mm
Height 2.54mm

Technical

Overall Contact Length 0.845 21.46mm
Housing Color Black
Contact Gender Male
Contact Length - Mating 0.235 5.97mm
Contact Finish - Post Gold
Number of Contacts 5
Shrouding Unshrouded
Contact Length - Post 0.510 12.95mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 2.5A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.100 2.54mm
Pitch 2.54mm
Current Rating (Amps) 2.5A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 1.5kV
Gender Male
Number of Rows 1
Color Black
Number of Positions 5
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series 929
Published 2008
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Housing Material PBT
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
