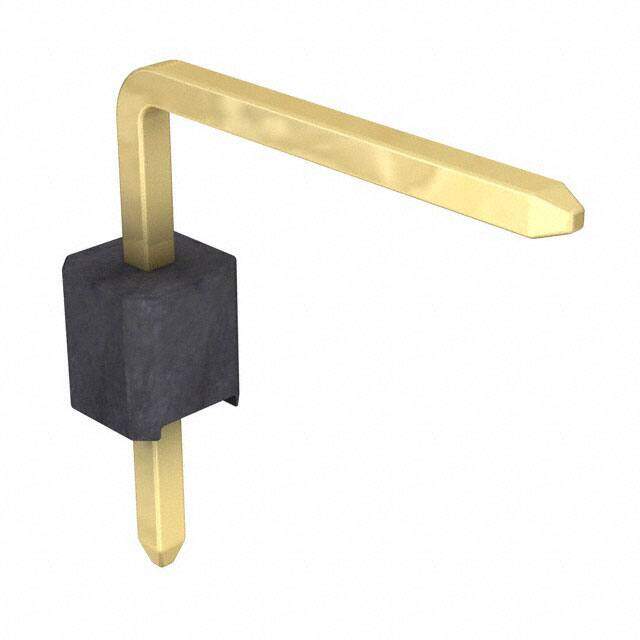

929550-01-01-EU

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Headers & Wire Housings .100/.295 1 PIN HDR RT ANG
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.3784
≥1 USD $0.3784
≥10 USD $0.31856
≥100 USD $0.247984
≥500 USD $0.212555
≥1000 USD $0.177126
≥3000 USD $0.151826
Inventory: 605
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 10.0μin 0.25μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Width 2.44mm
Length 2.54mm
Height 5.97mm

Technical

Housing Color Black
Contact Length - Mating 0.295 7.49mm
Contact Finish - Post Gold
Number of Contacts 1
Shrouding Unshrouded
Contact Length - Post 0.130 3.30mm
Insulation Color Black
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.110 2.79mm
Current Rating (Amps) 2.5A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Color Black
Number of Positions 1
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series 929
Published 2008
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Housing Material Plastic
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
