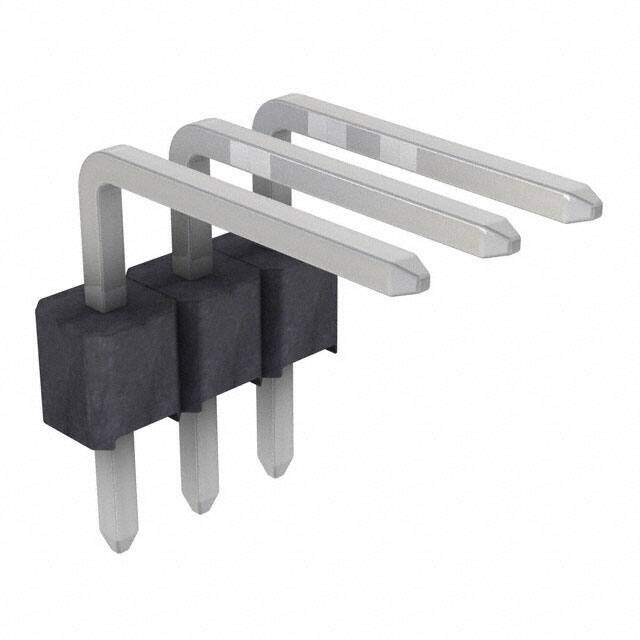

929500-01-03
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER .100 SNGL R/A 3POS
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.3784
≥1 USD $0.3784
≥10 USD $0.3256
≥100 USD $0.253
≥500 USD $0.216832
≥1000 USD $0.18069
≥3000 USD $0.15488
Inventory: 1858
Minimum: 1
-
+
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Plastic
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2008
Series 929
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header, Breakaway
Number of Positions 3
Color Black
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Tin-Lead
Contact Type Male Pin
Current Rating (Amps) 2.5A
Pitch 2.54mm
Insulation Height 0.110 2.79mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.130 3.30mm
Shrouding Unshrouded
Number of Contacts 3
Contact Length - Mating 0.295 7.49mm
Housing Color Black
Dimensions
Height 5.97mm
Length 7.62mm
Width 2.44mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
