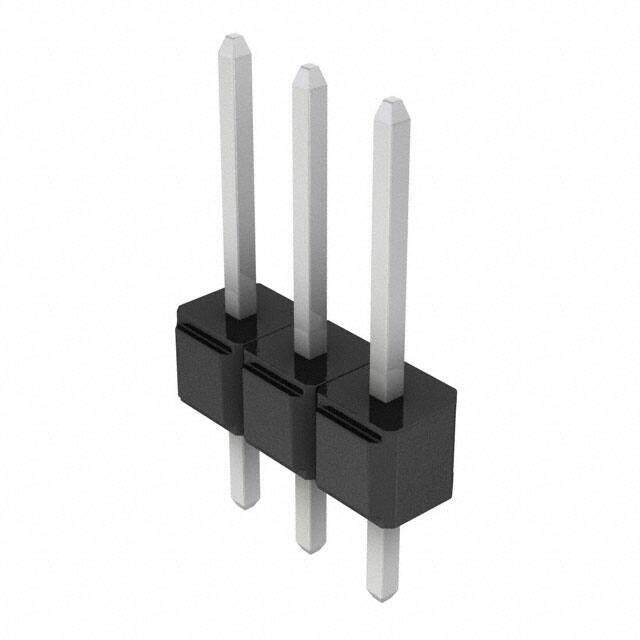

929400-01-03-RK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings .100/.295 3 PIN HDR STR
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.3784
≥1 USD $0.3784
≥10 USD $0.3256
≥100 USD $0.253
≥500 USD $0.216832
≥1000 USD $0.18069
≥3000 USD $0.15488
Inventory: 601
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Polyester
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2008
Series 929
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Connector Type Header, Breakaway
Number of Positions 3
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 1.5kV
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 2.5A
Pitch 2.54mm
Insulation Height 0.110 2.79mm
Style Board to Board
Number of Positions Loaded All
Current Rating 2.5A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.130 3.30mm
Shrouding Unshrouded
Number of Contacts 3
Contact Finish - Post Tin
Contact Length - Mating 0.295 7.49mm
Contact Gender Male
Housing Color Black
Lead Length 3.3mm
Overall Contact Length 0.535 13.59mm
Mating Post Length 7.49mm
Dimensions
Height 2.79mm
Length 7.62mm
Width 2.44mm
Contact Finish Thickness - Mating 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
