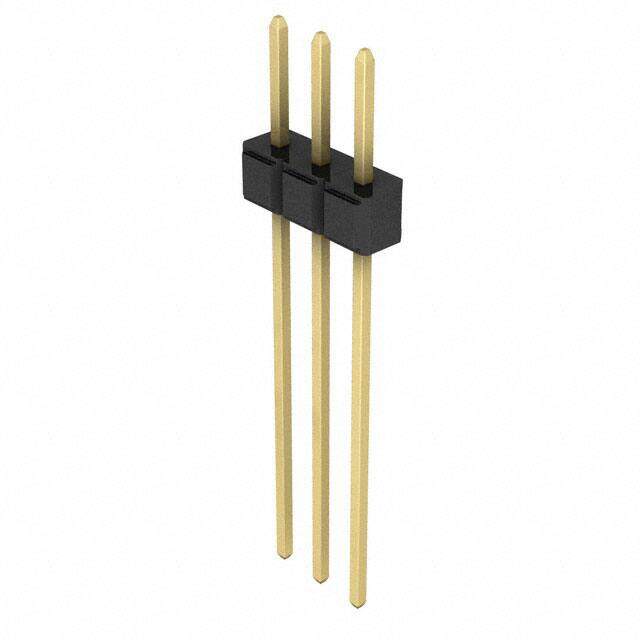

924517-28-03-I

3M
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 3POS 2.54MM
PDF
/
Inventory: 5974
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 10.0μin 0.25μm
Contact Finish Thickness - Mating 10.0μin 0.25μm

Technical

Overall Contact Length 1.128 28.65mm
Contact Length - Mating 0.235 5.97mm
Contact Finish - Post Gold
Shrouding Unshrouded
Contact Length - Post 0.793 20.14mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.100 2.54mm
Pitch 2.54mm
Current Rating (Amps) 2.5A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Color Black
Number of Positions 3
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series 929
Published 2004
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 3 Weeks
