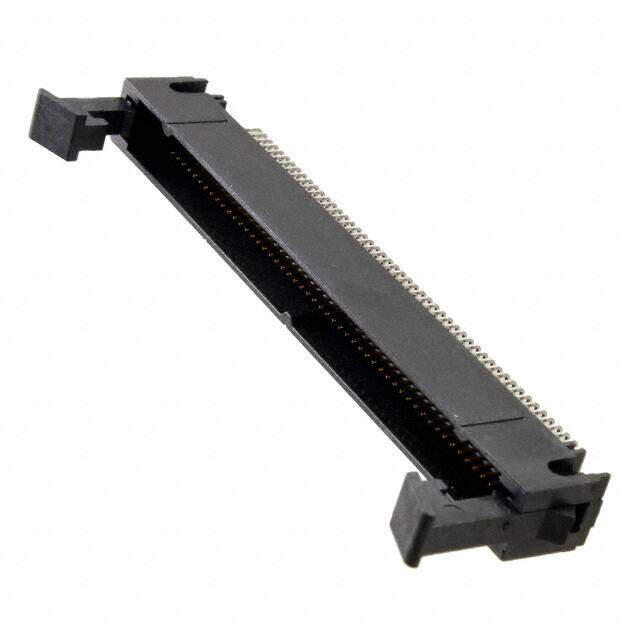

81100-560203-RB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
80000901993 81100-560203-Rb=100/mhdr/ra/ll/.062/30Avg/rohs Rohs Compliant: Yes
PDF
/
Buying Options
Total Price: USD $26.34
Unit Price: USD $26.3384
≥1 USD $26.3384
≥10 USD $23.06744
≥100 USD $20.64656
Inventory: 385
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Polymer
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2013
Series 810
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 100
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Black
Number of Rows 2
Gender Male
Fastening Type Latch Lock/Eject Hooks, Long
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 0.75A
Pitch 1.27mm
Insulation Height 0.310 7.87mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 750mA
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.090 2.29mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.140 3.56mm
Contact Gender Male
Housing Color Black
Dimensions
Height 7.87mm
Length 77.7mm
Width 10.3mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 250.0μin 6.35μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
