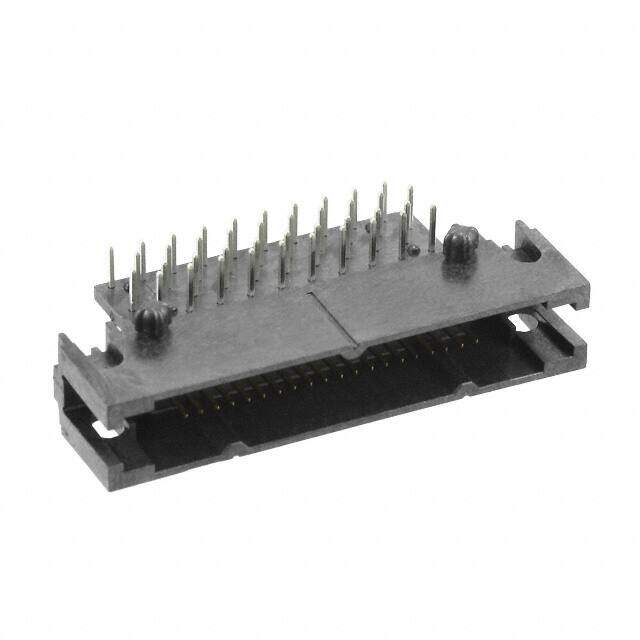

81040-M00203-RB
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 40POS R/A 4ROW SLD
PDF
/
Inventory: 6762
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Plastic
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2011
Series 810
Feature Board Lock
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 40
Color Black
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 0.5A
Pitch 1.27mm
Insulation Height 0.310 7.87mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 500mA
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.140 3.56mm
Housing Color Black
Dimensions
Height 7.87mm
Length 39.6mm
Width 10.3mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
