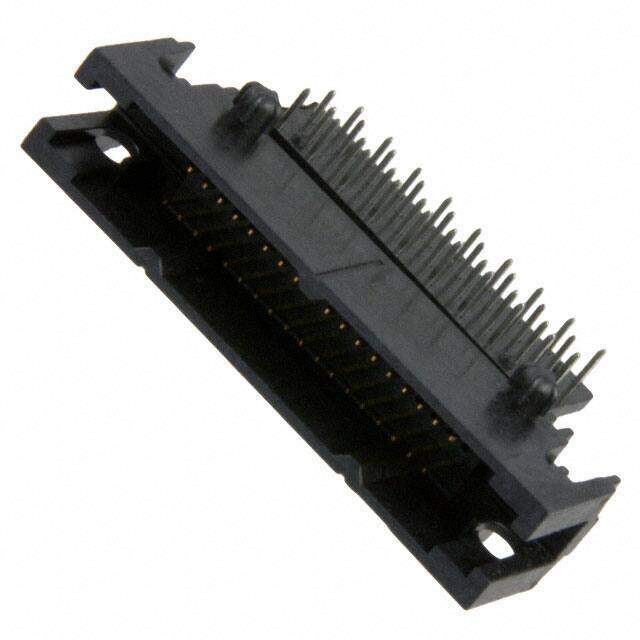

81036-M00203-RB
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 36POS R/A 4ROW SLD
PDF
/
Inventory: 10012
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Width 10.3mm
Length 37.1mm
Height 7.87mm
Technical
Housing Color Black
Contact Length - Mating 0.140 3.56mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Current Rating 500mA
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.310 7.87mm
Pitch 1.27mm
Current Rating (Amps) 0.5A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Color Black
Number of Positions 36
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Lock
Series 810
Published 2011
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Plastic
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
