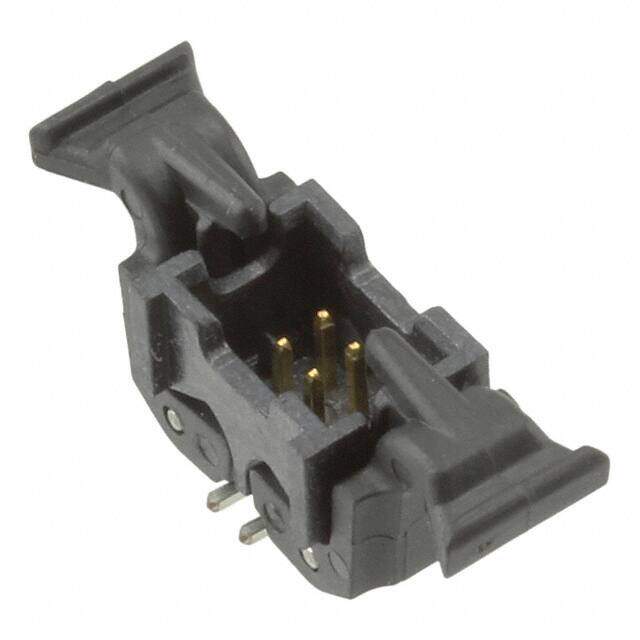

45204-220230

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Headers & Wire Housings 4P, .050 Pitch HDR SMT, 30Au, LATCH
PDF
/
Buying Options
Total Price: USD $7.68
Unit Price: USD $7.6824
≥1 USD $7.6824
≥10 USD $6.91592
≥100 USD $6.180856
Inventory: 396
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Stack Height (Mating) 5.84mm 6.60mm 7.21mm 8.13mm
Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 30.0μin 0.76μm

Technical

Contact Gender Male
Contact Finish - Post Tin
Number of Contacts 4
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.050 (1.27mm)
Pitch - Mating 0.050 1.27mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.222 5.65mm
Pitch 1.27mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks, Short
Voltage - Rated 125V
Number of Rows 2
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 4
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Keying Slot, Pick and Place
Series 452
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -65°C~125°C

Physical

Housing Material Liquid Crystal Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 10 Weeks
