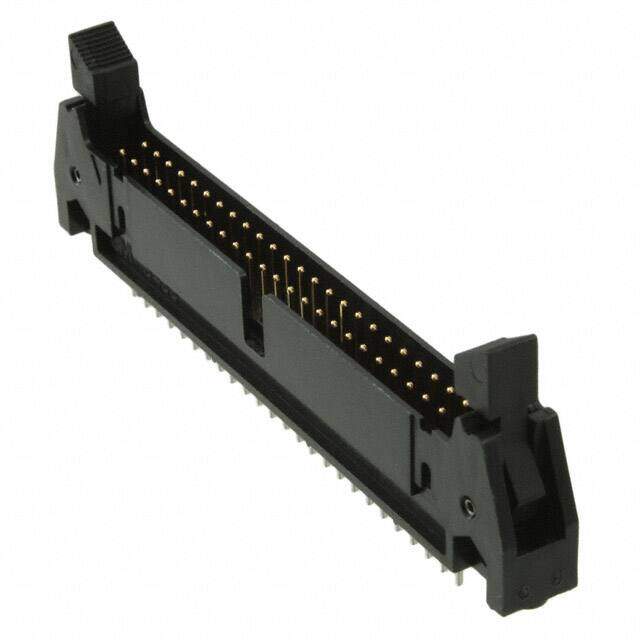

3433-6203
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 50P STRT SOLDER TAIL
PDF
/
Buying Options
Total Price: USD $7.01
Unit Price: USD $7.00616
≥1 USD $7.00616
≥10 USD $6.609582
≥100 USD $6.235453
≥500 USD $5.882502
≥1000 USD $5.549534
Inventory: 6360
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Technical
Overall Contact Length 0.695 17.65mm
Housing Color Grey
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin-Lead
Lead Pitch 2.54mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.155 3.94mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.680 17.27mm
Pitch 2.54mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks, Short
Number of Rows 2
Color Grey
Number of Positions 50
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Feature Keying Slot, Mounting Flange
Series 3000
Published 2009
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Weight 1.360777kg
Housing Material Plastic
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
