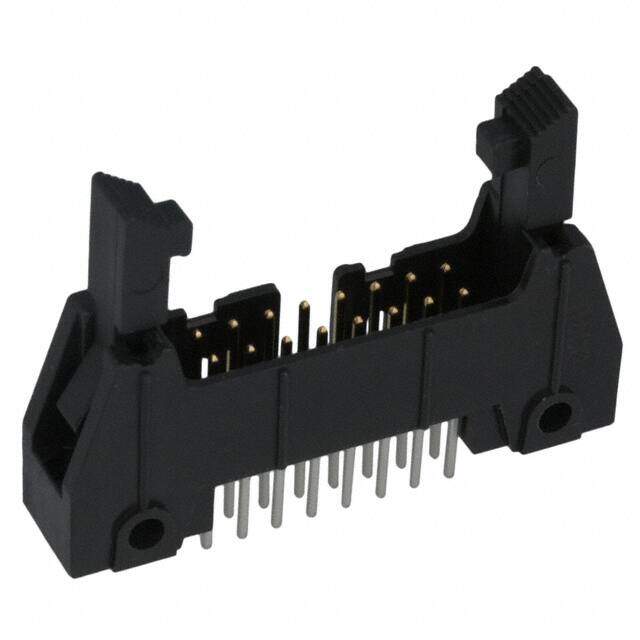

3408-6302
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 16P STRT LONG PIN SOLDER TAIL 30u GOLD
PDF
/
Inventory: 1126
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 3m
Technical
Sensing Distance 3 m
Cable Length 3m
Max Current Rating 2A
Overall Contact Length 0.652 16.56mm
Lead Length 3m
Housing Color Grey
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin-Lead
Number of Contacts 16
Lead Pitch 2.54mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.112 2.84mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency UL
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 1.75A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.680 17.27mm
Orientation Straight
Pitch 2.54mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks, Long
Voltage - Rated 1kV
Number of Rows 2
Color Black, Grey
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 16
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Feature Keying Slot, Mounting Flange
Series 3000
Published 2005
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Weight 816.466266g
Housing Material Plastic
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 6 Weeks
