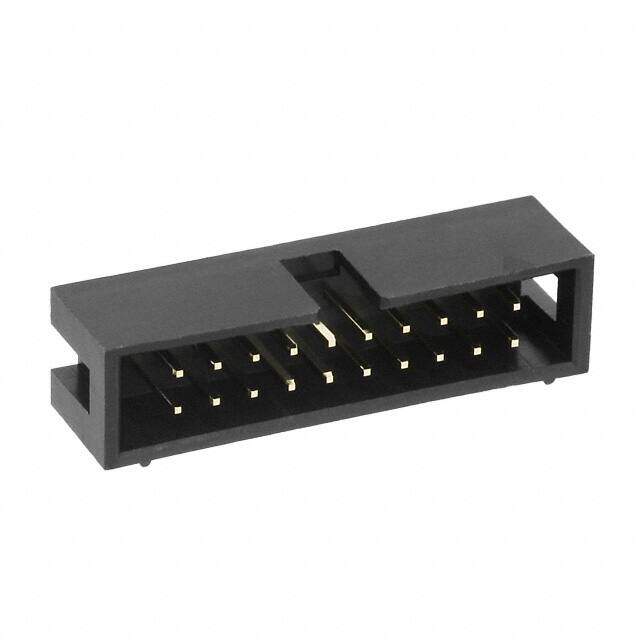

30320-6002HB

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Headers & Wire Housings 20P STRT 4WALL GLDFL
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.9152
≥1 USD $0.9152
≥10 USD $0.77528
≥100 USD $0.696344
≥500 USD $0.569694
≥1000 USD $0.506405
≥3000 USD $0.443106
Inventory: 16199
Minimum: 1
-
+

Technical Details

Dimensions

Length 33mm
Contact Finish Thickness - Mating Flash
Contact Finish Thickness - Post Flash

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free

Technical

Max Current Rating 1A
Housing Color Black
Contact Length - Mating 0.236 6.00mm
Contact Finish - Post Gold
Number of Contacts 20
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.110 2.79mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.366 9.30mm
Depth 8.78mm
Orientation Straight
Pitch 2.54mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 20
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Keying Slot
Series 303
Published 2008
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Brass

Supply Chain

Factory Lead Time 9 Weeks
