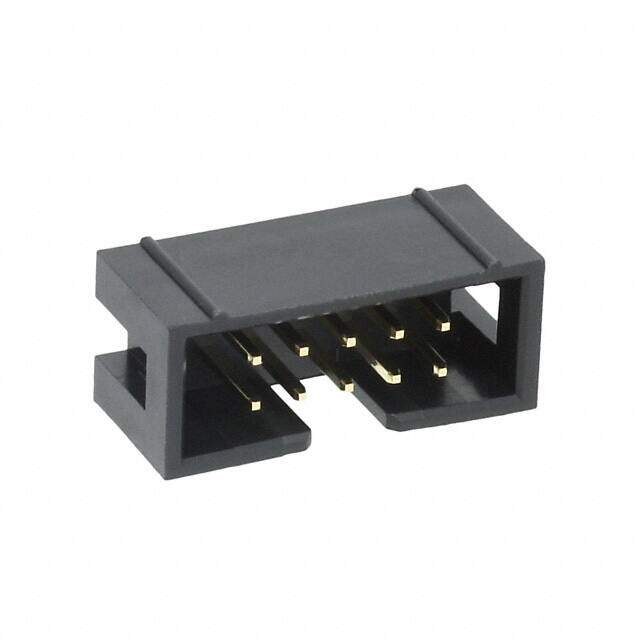

30310-6002HB image
Favorite
30310-6002HB image
Favorite

30310-6002HB

3M
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 10POS 2.54MM
PDF
/
Buying Options
Total Price: USD $3.14
Unit Price: USD $3.13947
≥1 USD $3.13947
≥10 USD $2.96177
≥100 USD $2.79412
≥500 USD $2.63596
≥1000 USD $2.48676
≥3000 USD $2.346
Inventory: 668
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Brass
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polyester

Technical

Operating Temperature -55°C~105°C
Packaging Bulk
Published 2007
Series 303
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Black
Number of Rows 2
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1A
Pitch 2.54mm
Orientation Straight
Depth 8.78mm
Insulation Height 0.366 9.30mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Approval Agency UL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.110 2.79mm
Shrouding Shrouded - 4 Wall
Number of Contacts 10
Contact Finish - Post Gold
Contact Length - Mating 0.236 6.00mm
Contact Gender Male
Housing Color Black
Lead Length 2.79mm
Max Current Rating 1A
Cable Length 3m
Mating Post Length 5.99mm
Sensing Distance 3 m

Dimensions

Length 20.3mm
Contact Finish Thickness - Mating Flash
Contact Finish Thickness - Post Flash

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
