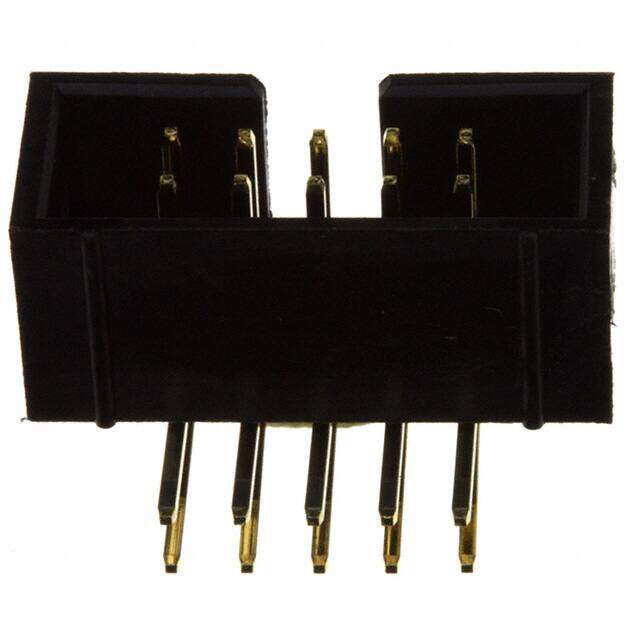

30310-5002HB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 10POS DL R/A GOLD
PDF
/
Buying Options
Total Price: USD $0.89
Unit Price: USD $0.8888
≥1 USD $0.8888
≥10 USD $0.75328
≥100 USD $0.676192
≥500 USD $0.553221
≥1000 USD $0.491753
≥3000 USD $0.430285
Inventory: 4370
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post Flash
Contact Finish Thickness - Mating Flash
Length 20.3mm
Technical
Max Current Rating 1A
Housing Color Black
Contact Length - Mating 0.236 6.00mm
Contact Finish - Post Gold
Number of Contacts 10
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.110 2.79mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.331 8.40mm
Depth 13.26mm
Orientation Right Angle
Pitch 2.54mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Keying Slot
Series 303
Published 2011
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 9 Weeks
