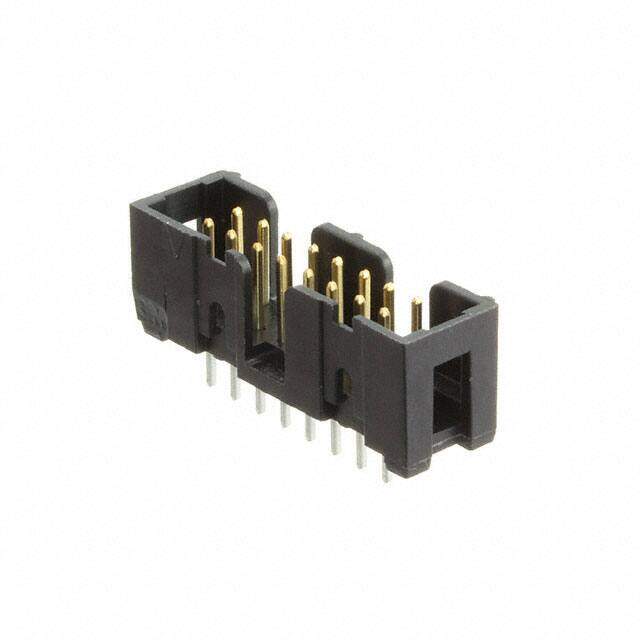

2516-6002-UB image
Favorite
2516-6002-UB image
Favorite

2516-6002-UB

3M
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 16POS 2.54MM
PDF
/
Inventory: 3160
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 30.0μin 0.76μm

Technical

Max Current Rating 2A
Housing Color Grey
Contact Length - Mating 0.243 6.17mm
Contact Finish - Post Tin-Lead
Number of Contacts 16
Lead Pitch 2.54mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.112 2.84mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency UL
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 1.75A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.390 9.91mm
Orientation Straight
Pitch 2.54mm
Current Rating (Amps) 1.75A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 1kV
Gender Male
Number of Rows 2
Color Black, Grey
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Number of Positions 16
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Feature Keying Slot
Series 2500
Published 2008
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Housing Material Plastic
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 6 Weeks
