2308-6121-TP
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

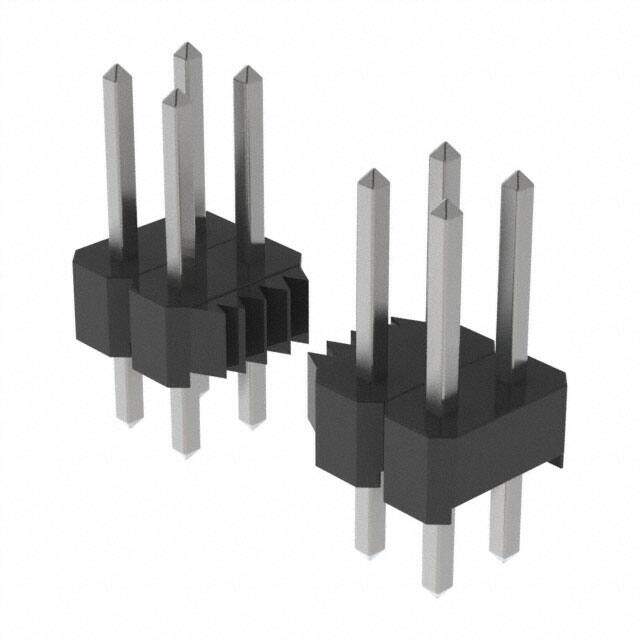

PIN STRIP HEADER 8 PIN STRAIGHT
PDF
/
Inventory: 2392
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Technical
Overall Contact Length 0.450 11.43mm
Contact Length - Mating 0.230 5.84mm
Contact Finish - Post Tin-Lead
Shrouding Unshrouded
Contact Length - Post 0.120 3.05mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Tin-Lead
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Color Black
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 2300
Published 2008
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Insulation Material Thermoplastic, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
