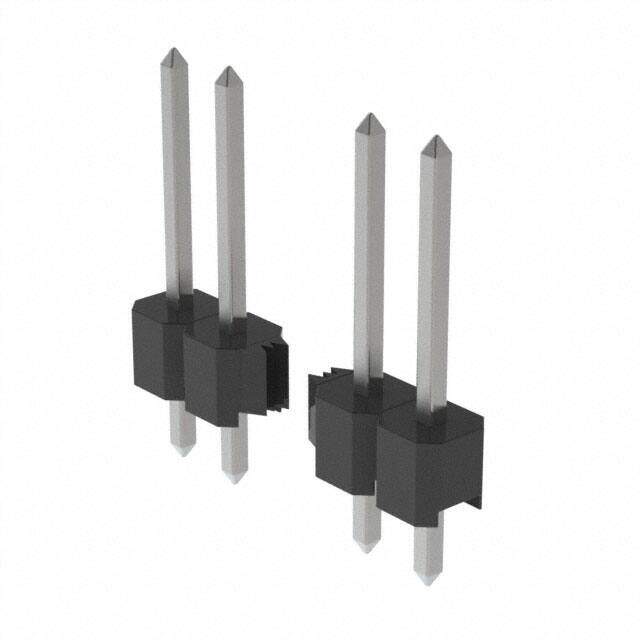

2307-6211-TP

3M
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description PIN STRIP HEADER 7 PIN STRAIGHT
PDF
/
Inventory: 3799
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic, Glass Filled

Technical

Operating Temperature -55°C~105°C
Packaging Bulk
Published 2008
Series 2300
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 7
Color Black
Number of Rows 1
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Tin-Lead
Contact Type Male Pin
Current Rating (Amps) 3A
Pitch 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.120 3.05mm
Shrouding Unshrouded
Contact Finish - Post Tin-Lead
Contact Length - Mating 0.318 8.08mm
Overall Contact Length 0.538 13.67mm

Dimensions

Contact Finish Thickness - Post 100.0μin 2.54μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
