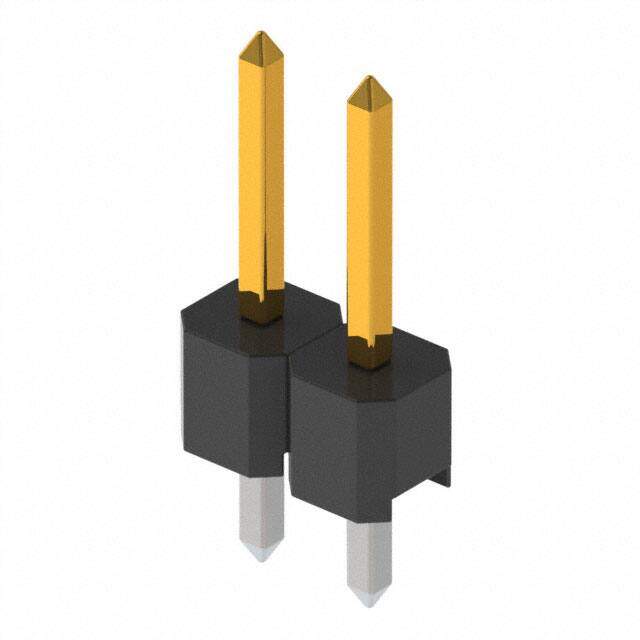

2302-6111-TG
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 2POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.43
Unit Price: USD $0.4312
≥1 USD $0.4312
≥10 USD $0.3784
≥100 USD $0.31196
≥500 USD $0.271269
≥1000 USD $0.223793
≥3000 USD $0.196662
Inventory: 7905
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Through Hole
Contact Shape Square
Insulation Material Thermoplastic, Glass Filled
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2008
Series 2300
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 2
Number of Rows 1
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.120 3.05mm
Shrouding Unshrouded
Contact Finish - Post Tin-Lead
Contact Length - Mating 0.230 5.84mm
Overall Contact Length 0.450 11.43mm
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
