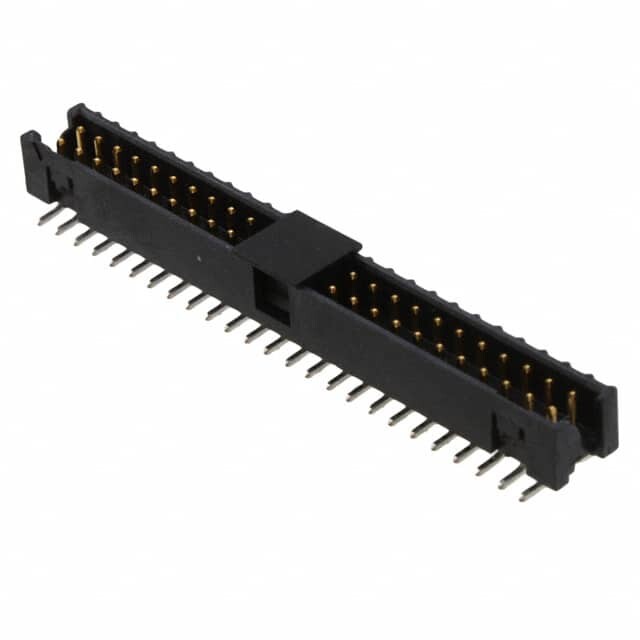

159250-2002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 2MM 50POS VRT AU SMD
PDF
/
Inventory: 4621
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Contact Length - Mating 0.142 3.61mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.079 (2.00mm)
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.210 5.33mm
Pitch 2.0066mm
Current Rating (Amps) 1.25A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Detent Lock
Voltage - Rated 150V
Number of Rows 2
Color Black
Number of Positions 50
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Feature Keying Slot
Series 159
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C
Physical
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Contact Material Copper Alloy
