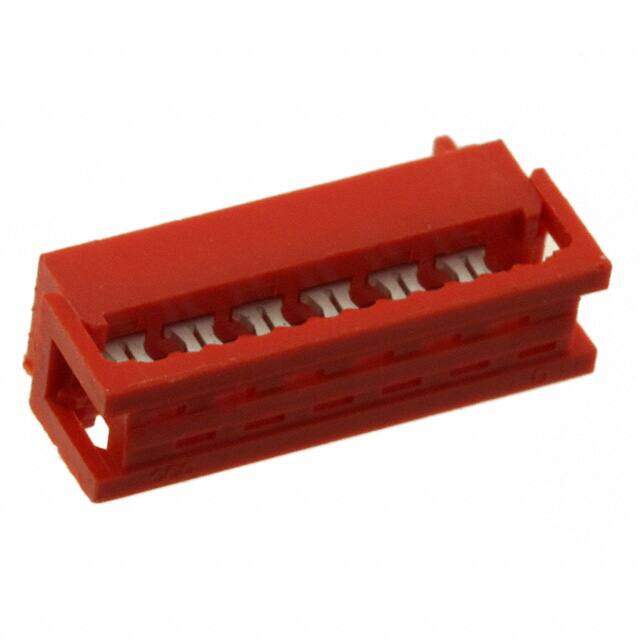

690157001272
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN PLUG 12POS IDC 28AWG TIN
PDF
/
Buying Options
Total Price: USD $0.96
Unit Price: USD $0.956378
≥1 USD $0.956378
≥10 USD $0.902245
≥100 USD $0.851169
≥500 USD $0.802995
≥1000 USD $0.75754
Inventory: 1166
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Length 17.27mm
Height 7mm
Technical
Wire Type Ribbon Cable
Insulation Insulated
Cable Termination IDC
Wire/Cable Gauge 28 AWG
Wire/Cable Type Ribbon
Row Spacing 0.059 (1.50mm)
Insulation Resistance 1GOhm
Wire Gauge 28 AWG
Contact Gender Male
Number of Contacts 12
Contact Finish Tin
Current Rating 1A
Orientation Straight
Pitch 0.100 2.54mm
Contact Type Male Pin
Voltage - Rated 100V
Gender Male
Number of Rows 2
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 12
Connector Type Plug
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through
Series WR-MM
Packaging Tube
Physical
Housing Material PBT
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material Bronze
Supply Chain
Factory Lead Time 21 Weeks
